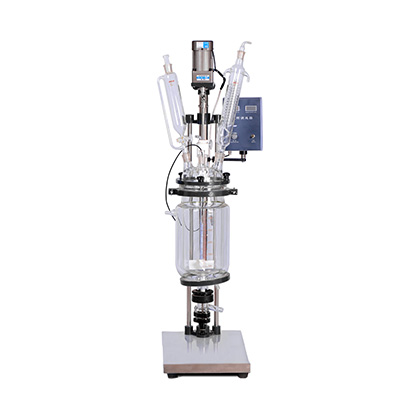

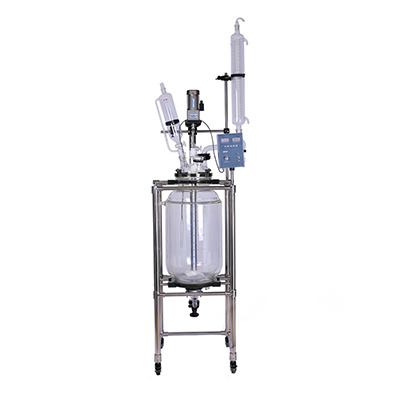

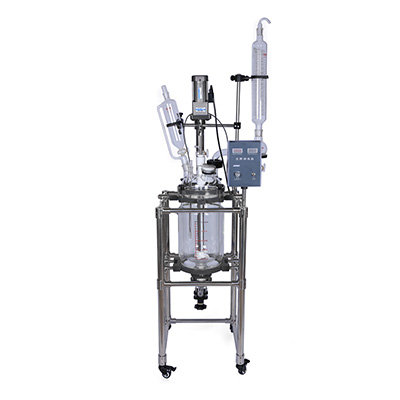

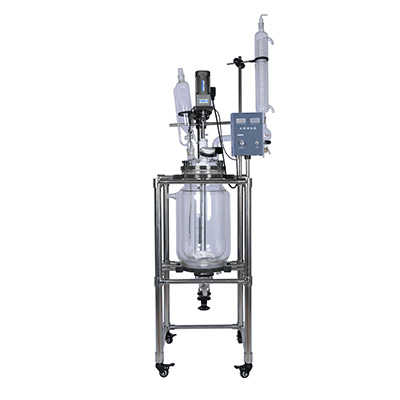

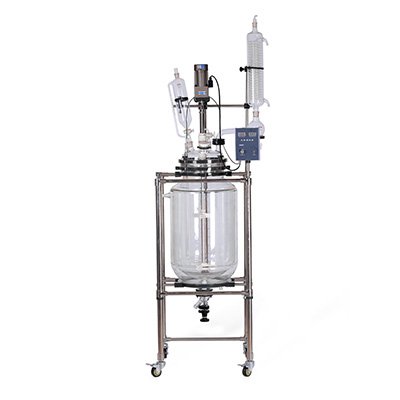

Jacketed Glass Reactor-0
Jacketed Glass Reactor-1
Jacketed Glass Reactor-2
Jacketed Glass Reactor-3

Jacketed Glass Reactor

᛫ 1L-100L for Choice
᛫ Premium Detail Quality
᛫ Easy to Operate
᛫ Great after-sales service
᛫ Warehouse in USA | Canada | Spain | Thailand with fast delivery.

Jacketed Glass Reactor-0
Jacketed Glass Reactor-1
Jacketed Glass Reactor-2
Jacketed Glass Reactor-3
24 hours customer servie

24 hours online
customer service

products solutions

Provide reasonable
solutions

factory direct sales

Factory
direct sales

fast arrival

1-2 days arrival
from warehouse

Installation guide

Installation
guide

video communication

video
communication

after-sales department

Professional
after-sales department

return visit

After-sale
return visit

maintenance service

After-sale
maintenance service

Pre-sale service

Sales service

After-sales service

Tip:We have warehouses in the United States and Spain, if you are nearby, you can receive the goods in 1-2 days.

Jacketed glass reactor is designed with double-layer glass. The inner layer can be put into the reaction solvent for stirring and mixing reaction and filtering. The interlayer can be connected with different cold and heat sources (refrigerated liquid, hot water or hot oil) for cyclic heating or cooling reaction.


Get Latest Price

Features of Our Jacketed Glass Reactor

Corrosion Resistance: Glass reactors are made from high-quality borosilicate glass, which is highly resistant to chemical corrosion. This means that the glass reactor can withstand exposure to harsh chemicals, such as acids and bases, without corroding or degrading over time.

glass parts of jacketed glass reactor

Transparent: One of the most significant advantages of glass reactors is their transparency. The clear glass walls of the reactor allow for easy observation of the reaction taking place inside. This is particularly useful in reactions where color changes or precipitate formation are indicators of reaction progress.

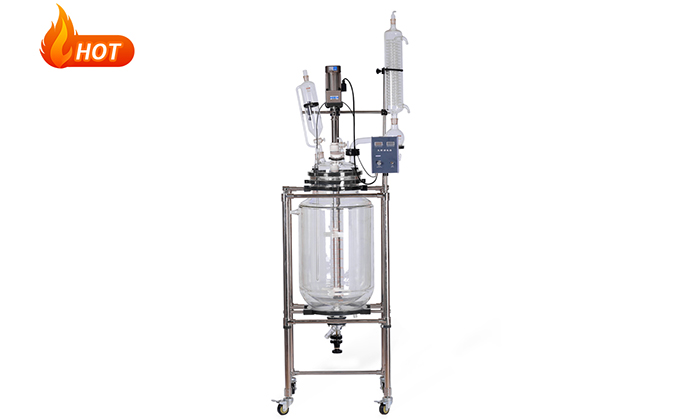

body of jacketed glass reactors

High Temperature Resistance: Borosilicate glass is known for its high-temperature resistance, making it an ideal material for reactors that operate at high temperatures. Glass reactors can handle temperatures ranging from -80°C to 250°C, depending on the specific model.

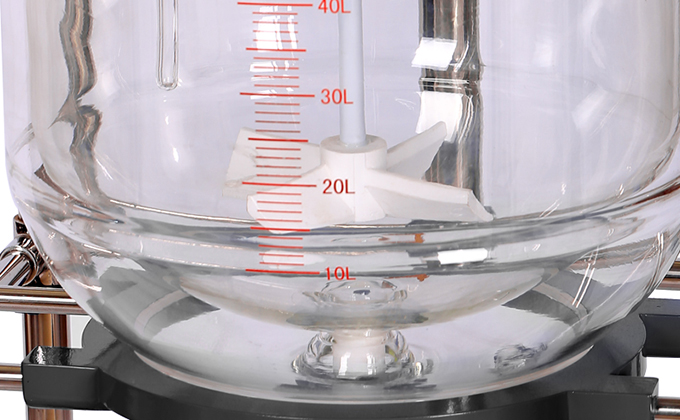

the kettle of jacketed glass reactors

Precise Temperature Control: Glass reactors are equipped with a jacketed design that allows for precise temperature control during the reaction. The jacket allows for heating or cooling fluid to circulate around the reactor vessel, maintaining a constant temperature inside the reactor. This is essential for achieving consistent results in chemical reactions.

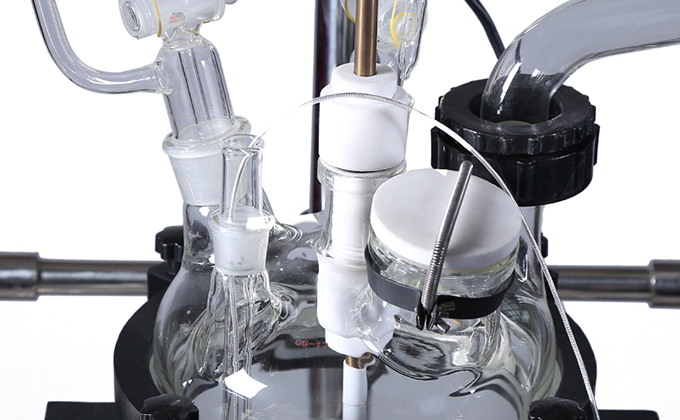

parts of jacketed glass reactor

Efficient Mixing: The stirrer in glass reactors provides efficient mixing of the reactants, promoting better contact between the reactants and accelerating the reaction. This leads to faster reaction times and better yields.

Frequency conversion motor: stable operation, large torque, automatic boosting, no spark, no noise, long service life.

jacketed glass reactor motor

Easy Maintenance: Glass reactors are easy to clean and maintain, as the smooth, non-reactive surface of the glass does not allow contaminants to stick to the walls of the reactor. This also means that the reactor can be used for multiple experiments with minimal risk of cross-contamination.

Get Latest Price

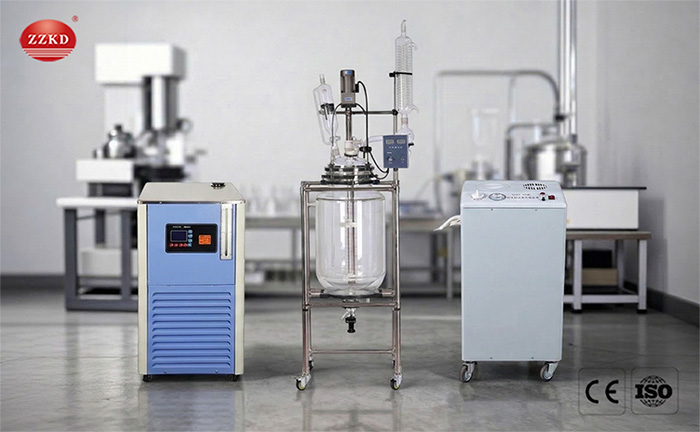

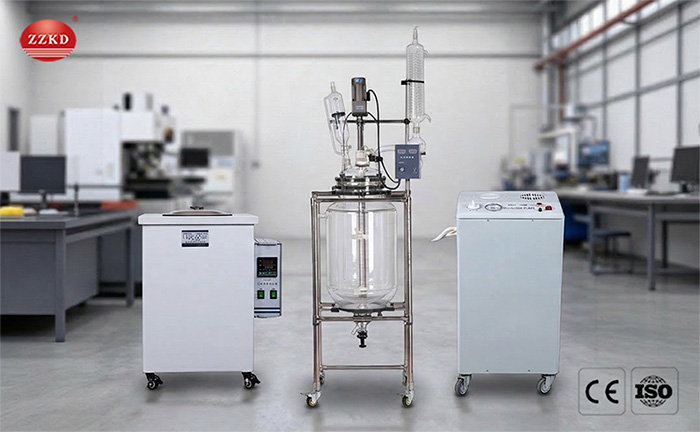

Grouped equipment for jacketed glass reactor

Our customer use cases





Get Latest Price

Warehouse in USA | Canada | Spain | Thailand

We have warehouses in the United States (Los Angeles), Canada (Vancouver), Spain (Valencia), Thailand (Bangkok), and have a large inventory,no matter which country you are in, you are guaranteed to receive the goods as quickly as possible.

borosilicate glass reactor supplier

Why Choose us?

1)Jacketed glass reactors now in stock with fast delivery.

2)  2L to 100L for Choice.

3)  With 13 years of experience in R&D and production of Jacketed glass reactor.

4)  Provide you with premium quality products and perfect after-sales service.

5)  Premium  quality with CE certification.

6)  Factory direct sales with competitive price.

7)  Provide one-stop Extraction Turnkey Solution.

glass lab reactor cost

jacketed-glass-reactor-in-our-stock

Get Latest Price

Parameter

Model

Power(W )

Stirring Speed(rmp)

Diameter

Capacity(L)

Power Supply

Motor  Torque(g/cm)

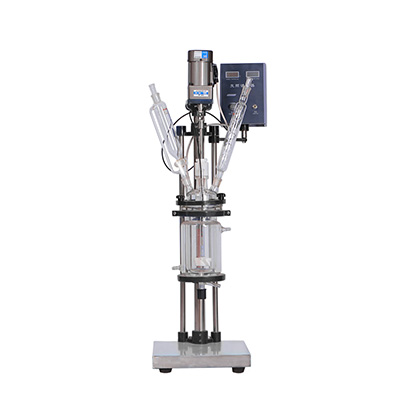

S-1L

60

0~600(Max.1300)

12

1

220V 50/60 Hz

2000

S-2L

60

0~600(Max.1300)

12

2

220V 50/60 Hz

2400

S-3L

60

0~600(Max.1300)

12

3

220V 50/60 Hz

2400

S-5L

60

0~600(Max.1300)

12

5

220V 50/60 Hz

4800

S-10L

120

0~600(Max.1300)

12

10

220V 50/60 Hz

1000

S-20L

120

0~600(Max.1300)

12

20

220V 50/60 Hz

1200

S-30L

120

0~600(Max.1300)

12

30

220V 50/60 Hz

1200

S-50L

120

0~600(Max.1300)

12

50

220V 50/60 Hz

1500

S-100L

250

0~600(Max.1300)

15

100

220V 50/60 Hz

3000

Model

Power(W )

Stirring Speed(rmp)

Diameter

S-1L

60

0~600(Max.1300)

12

S-2L

60

0~600(Max.1300)

12

S-3L

60

0~600(Max.1300)

12

S-5L

60

0~600(Max.1300)

12

S-10L

120

0~600(Max.1300)

12

S-20L

120

0~600(Max.1300)

12

S-30L

120

0~600(Max.1300)

12

S-50L

120

0~600(Max.1300)

12

S-100L

250

0~600(Max.1300)

15
