The vacuum drying oven produced by ZZKD Machinery is used to dry heat-sensitive, easily decomposed and easily oxidized materials, including some materials with complex components, which can also be dried quickly.It is widely used in biochemistry, chemical pharmacy, medical and health care, university laboratories, scientific research institutions and other fields.

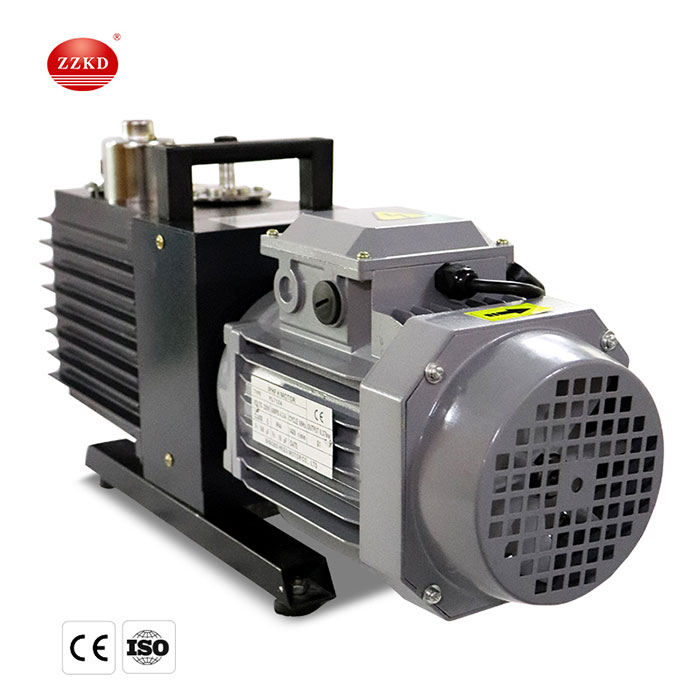

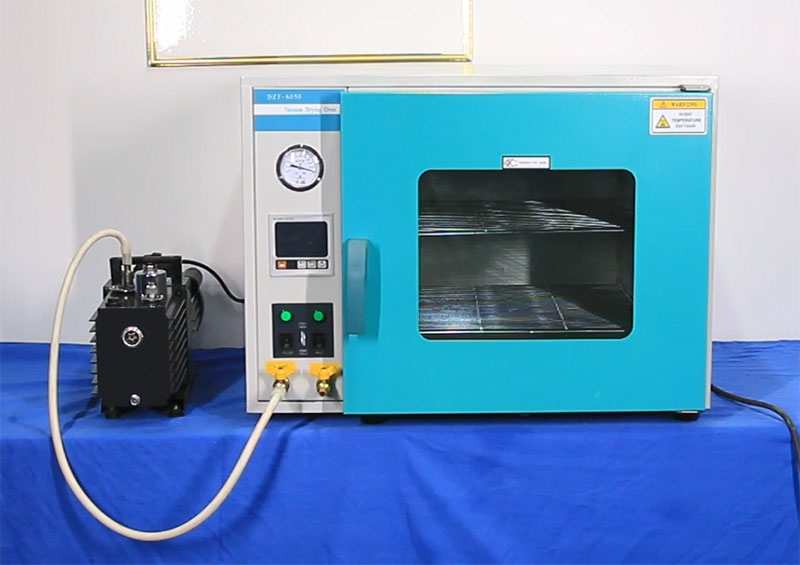

Vacuum drying ovens with rotary vane vacuum pump
Buying our vacuum drying oven needs to be used with our rotary vane vacuum pump. The rotary vane vacuum pump is a device that provides a vacuum environment for material reaction and can be connected to the vacuum drying oven. The models of our rotary vane vacuum pumps are: There are many kinds, and we will recommend the suitable vacuum pump to you according to the model of the vacuum drying oven you choose.
Features
1) Using an intelligent digital temperature regulator to set, display and control the temperature, the temperature control is more accurate.
2) Easy to operate and provide after-sales operation guidance for the product.
3) The shell of the electric heating vacuum drying box is stamped, folded and welded by steel plate. The framed surface is treated with high-strength electric spray coating and the paint film is smooth and strong.
4) The studio is made of carbon steel plate or stainless steel plate by folding and welding, and insulation cotton is filled between the studio and the shell.
5) The drying efficiency is high, and the time required to dry the material is less.

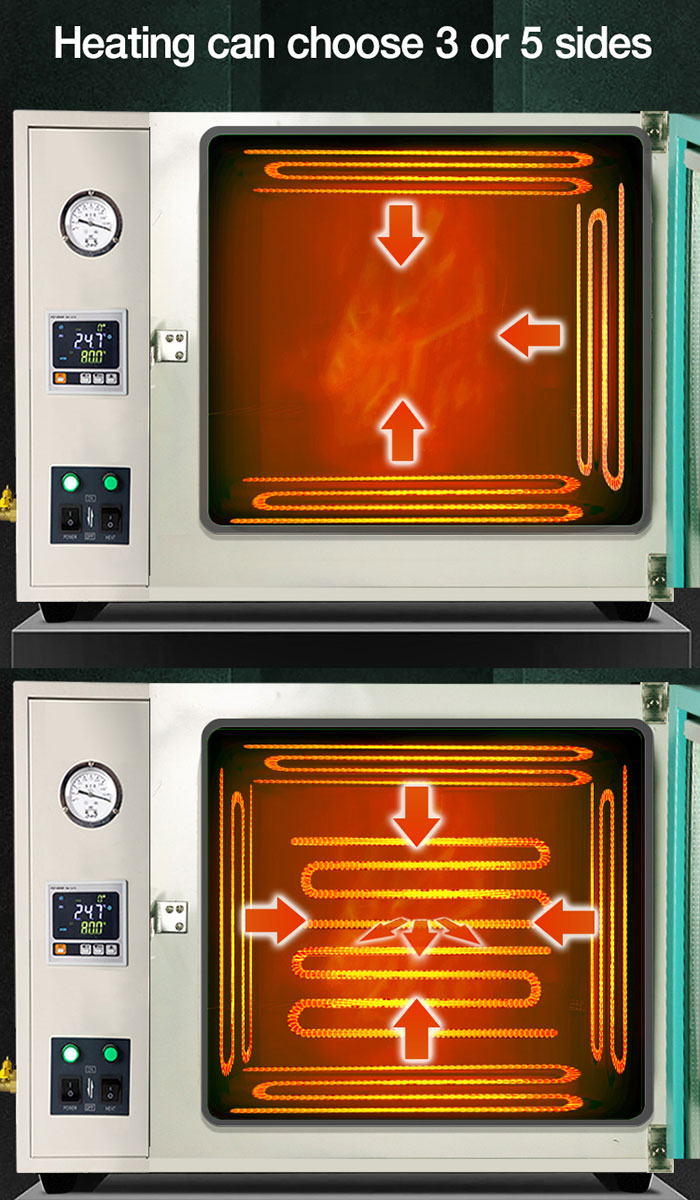

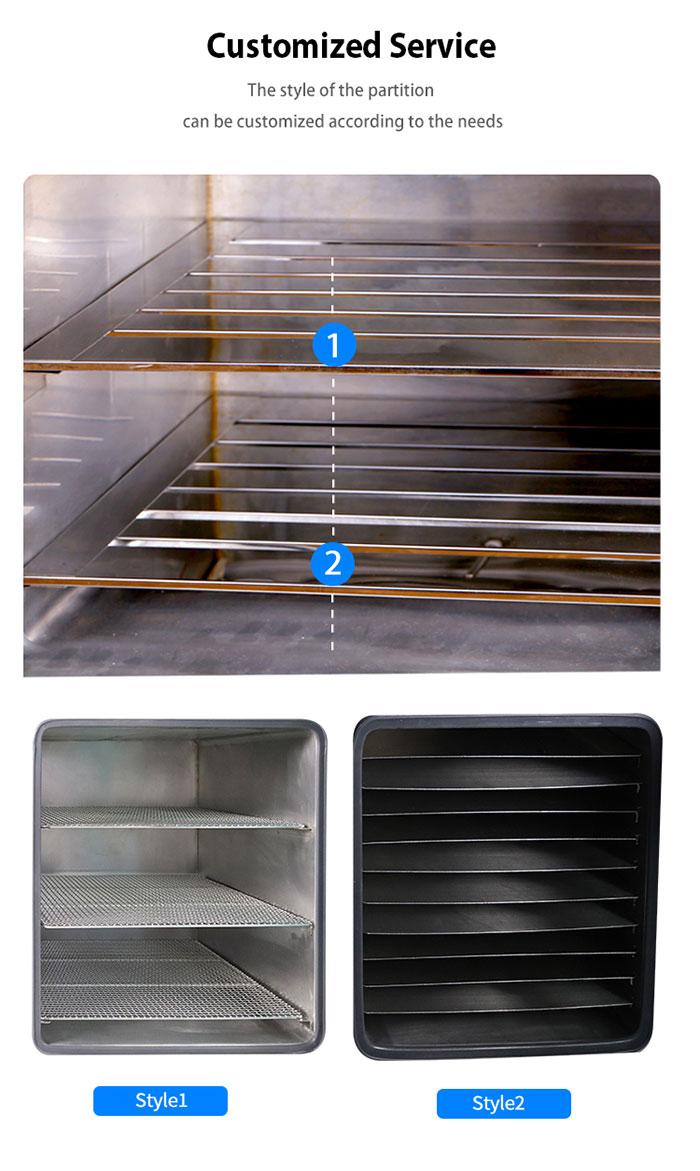

6) The interior of the studio is equipped with a sample shelf for placing various test items, and a mica heater is installed around the outer wall of the studio. The door seal is sealed with silicone rubber tape and the door has a glass for observation.

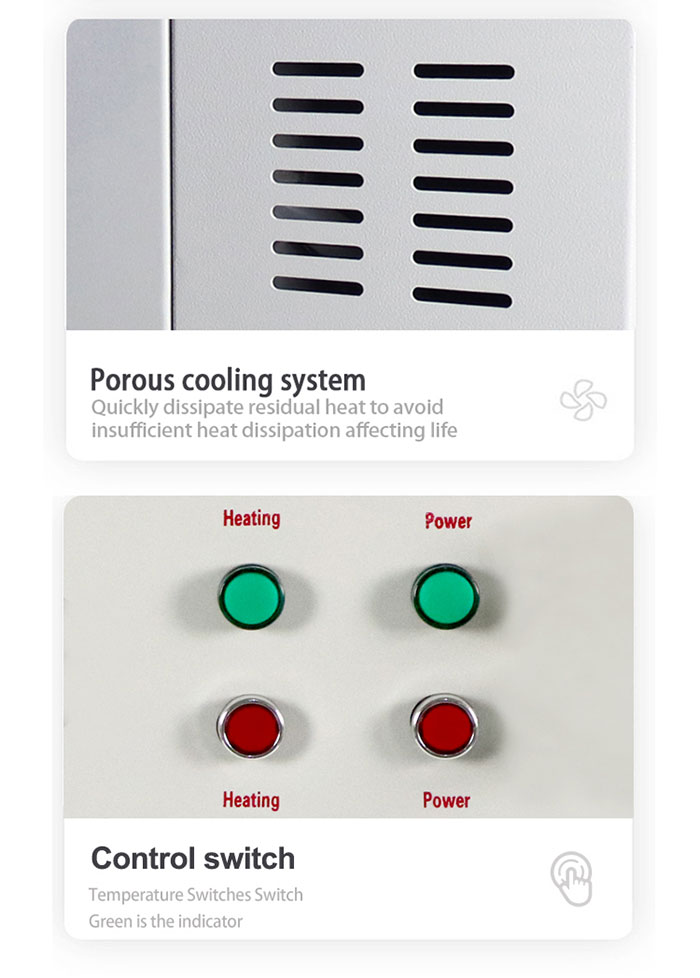

7) The evacuation and inflation of the electric heating vacuum drying box are controlled by solenoid valves. The power box is on the left or bottom of the box. The front panel of the electrical box is equipped with vacuum gauges, temperature control instruments and control switches, etc. The electrical box is equipped with electrical appliances element.
8)The inside of the lab vacuum drying oven is divided into several layers by the heating plate.The product does not contaminate easily during drying.
Vacuum drying oven application
Vacuum drying ovens are widely used in research and application fields such as biochemistry, chemical pharmacy, medical and health care, agricultural scientific research, environmental protection, etc. It is used for powder drying, baking and disinfection and sterilization of various glass containers;
Warehouse in USA | Canada | Spain | Thailand
We have warehouses in the United States (Los Angeles), Canada (Vancouver), Spain (Valencia), Thailand (Bangkok), and have a large inventory,no matter which country you are in, you are guaranteed to receive the goods as quickly as possible.
Why choose us？
1）Vacuum drying ovens now in stock with fast delivery.

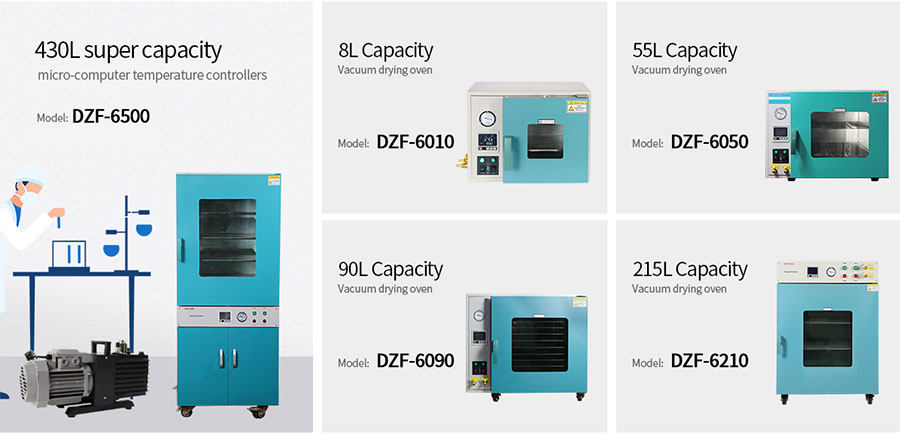

2) 8L to 430L for Choice.
3) With 13 years of experience in R&D and production of vacuum drying ovens.
4) provide you with premium quality products and perfect after-sales service.
5) Premium quality with CE certification.
6) Factory direct sales with competitive price.
7) Provide one-stop Extraction Turnkey Solution.
Advantages of our vacuum drying oven
1. For non-drying samples such as powders or other granular samples, vacuum drying can significantly shorten the drying time;
2. Samples with various mechanical parts and other holes with complex structures are cleaned and dried by vacuum drying, leaving no residue after complete drying.
3. Safer to use - under vacuum or inert conditions, eliminate the possibility of thermal explosion of oxides;
4. Compared with ordinary drying relying on air circulation, powdered samples will not be blown or moved by flowing air;
5. It adopts streamline arc design, the shell is made of cold-rolled steel plate, and the surface is electrostatically sprayed;
6. The temperature control system of this machine adopts microcomputer single-chip technology, temperature control, timing, and over-temperature alarm;
7. The display is a dual-screen high-brightness digital tube display, the display value is accurate and intuitive, and the performance is superior, and the adjustment parameters are set by touch buttons;
8. The temperature control sensor adopts the original imported components of capacitive type;
9. Adopt imported motor and fan blades; with timing and timing functions;
10. The inner tank is made of stainless steel; the semi-circular four corners are easy to clean;
11. The complete tightness of the door of the box can be adjusted by the user at will, and the integrally formed silicone rubber door seal ensures a high degree of vacuum in the box;
12. The studio of this machine is a cuboid structure, which maximizes the effective volume. The box door adopts a tempered, bulletproof double-layer glass door, so that users can see the cultivation items in the observation studio at a glance.
Parameter
Model | Temp. Range(°C)
| Max. Vacuum Degree(Mpa) | Working Temp.(°C) | Chamber Capacity (L) | Inner Dimension (W*D*H,mm) | Overall Dimension (W*D*H,mm) |

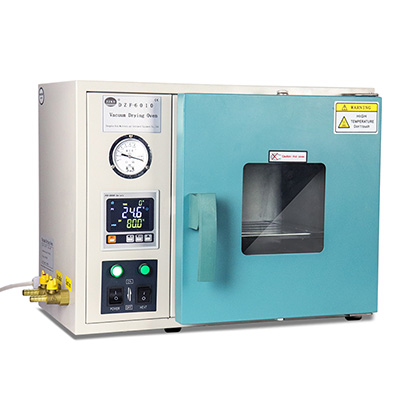

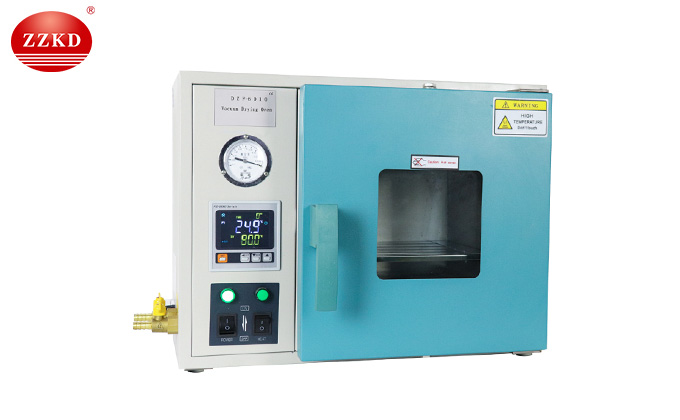

DZF-6010 | RT+10~200 | 0.098 | +5~40 | 8 | 200*200*200 | 600*400*430 |
DZF-6020 | RT+10~200(250) | 0.098 | +5~40 | 25 | 300*300*270 | 620*510*480 |

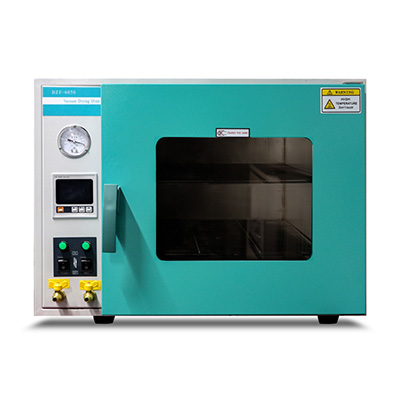

DZF-6050 | RT+10~200(250) | 0.098 | +5~40 | 55 | 400*400*345 | 710*580*530 |

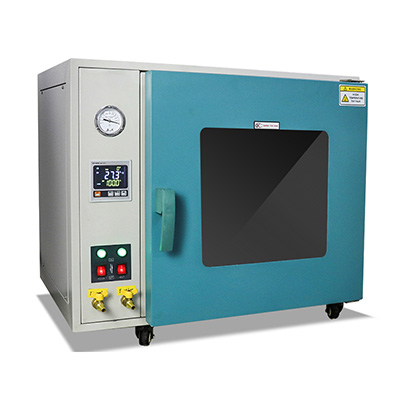

DZF-6090 | RT+10~200(250) | 0.098 | +5~40 | 90 | 450*450*450 | 610*680*710 |

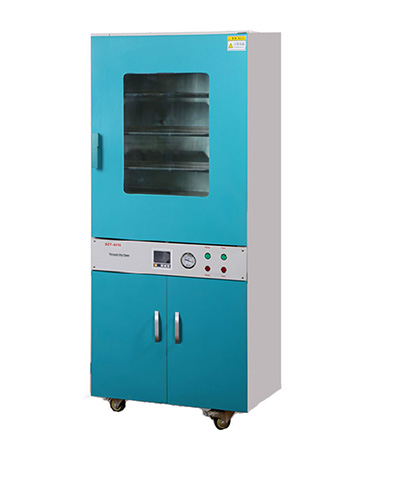

DZF-6210 | RT+10~200(250) | 0.098 | +5~40 | 215 | 560*600*640 | 720*820*1750 |

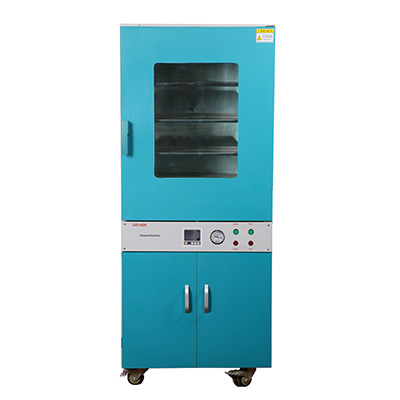

DZF-6500 | RT+10~200°C | 0.098 | +5~40 | 430 | 630*810*845 | - |
Model | Temp. Range(°C)
| Chamber Capacity (L) | Working Temp.(°C) |
DZF-6010 | RT+10~200 | 8 | +5~40 |
DZF-6020 | RT+10~200(250) | 25 | +5~40 |
DZF-6050 | RT+10~200(250) | 55 | +5~40 |
DZF-6090 | RT+10~200(250) | 90 | +5~40 |
DZF-6210 | RT+10~200(250) | 215 | +5~40 |
DZF-6500 | RT+10~200°C | 430 | +5~40 |
